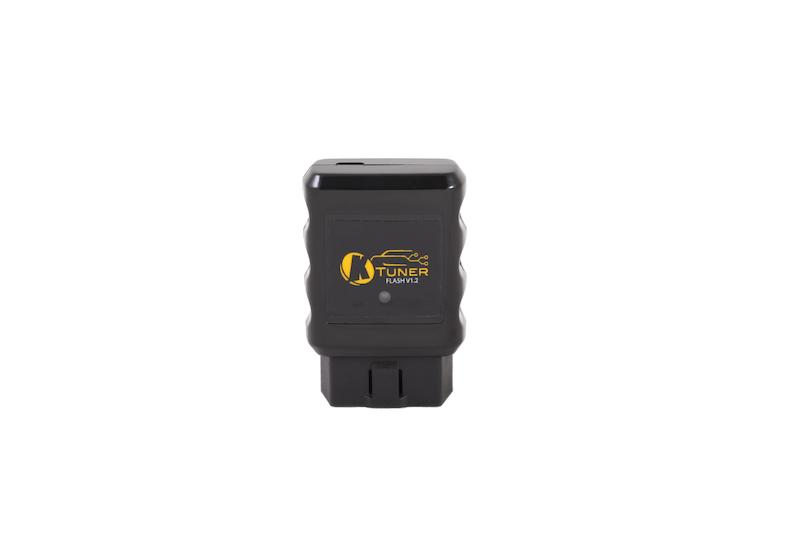

The LED on the front of the unit tells you the current status by color and pattern indications. See below.
-
Note - The colors will change multiple times at bootup as the self-tests are conducted.
|
Color
|
Type
|
Status Description
|
|
Yellow
|
Solid
|
Idle - No ECU Communication Detected (Unit Locked)
|
|
Blue/Green
|
Solid
|
Idle - No ECU Communication Detected (Unit Unlocked)
|
|
Blue/Green
|
Flashing
|
ECU Communication - Unit Not Locked
|
|
Green
|
Flashing
|
ECU Communication - Logging or Flashing
|
|
Orange
|
Solid
|
During The Flash Process This Means Erasing The ECU
|
|
Orange
|
Blinking
|
At The End Of A Flash Attempt This Indicates It's Waiting For Key Off
|
|
Dark Orange
|
Solid
|
ECU In Recovery Mode
|
|
Dark Orange
|
Blinking
|
At The End Of A Flash Attempt This Indicates It's Waiting For Key On
|
|
White
|
Blinking
|
On Board Logging Is Recording
|
|
Blue
|
Solid
|
Unit Recovery Mode Or Updating Firmware
|
|
Red
|
Solid
|
SD Card Communication Issue - Email Support
|
