Connecting with Bluetooth is simple. BT is disabled while USB is plugged into a computer,
but will be active when the unit is plugged into a vehicle.
BT PIN settings can be changed from the main menu
-
Disable will disable the need for a BT PIN code
-
Enable will require a BT PIN code as outlined below
-
Enable Adv will set the BT PIN code to 0000
-
Enable BT BLE will enable BLE for use with the iOS version of TunerView on units serial number 14000 and higher
When BT PIN is set to enabled the BT PIN code is the unit number
If your unit number is less than 10000 the passcode for the unit is the unit number in a block of 4 characters.
0001
0035
0930
If your unit number is 10000 or over the passcode for the unit is the unit number in a block of 5 characters.
10001
10035
10930

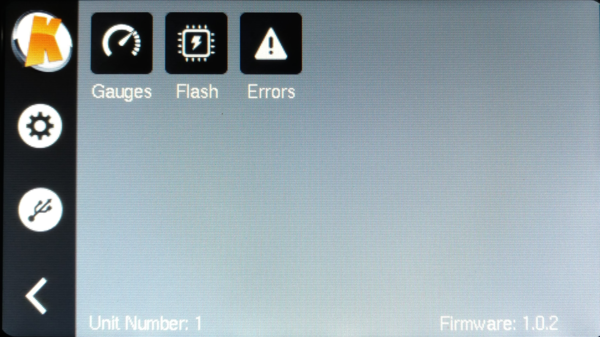

You can find the unit number by pressing the KTuner logo on the main menu.
